Tension Fabric Frame

FabriTex Tension Fabric Frame

  • Small or large format.
  • Easy graphic change.
  • Frameless design.
  • Various colours and finishes.
  • Single or double sided.
  • From only 18mm deep.
  • Custom sizes available.



FabriTex Logo

Quantity

Description

Custom Tension Fabric Frames for Textile Soft Signage

The FabriTex Tension Fabric Frame is a slimline, non-illuminated aluminium display system designed for high-impact textile soft signage. Starting from just 18mm deep, these virtually frameless displays can be manufactured in standard or bespoke sizes, from smaller promotional displays to large-format fabric graphics covering entire walls.

Ideal for retail advertising, office branding, car showrooms, exhibitions and commercial interiors, FabriTex frames use interchangeable silicone-edge graphics (SEG) to produce smooth, edge-to-edge printed fabric displays. When your artwork or promotional message changes, the fabric can be replaced without purchasing a new frame.

Slimline Aluminium Tension Fabric Frame Options

FabriTex tension fabric frames are manufactured from high-quality extruded aluminium profiles, providing a lightweight yet robust display system with minimal visible framing. The design allows the printed textile graphic to become the main visual feature, without a prominent surrounding border.

Single-Sided and Double-Sided Fabric Frames

Our single-sided tension fabric frames are available in 18mm and 24mm deep profiles, making them particularly suitable for wall-mounted graphics, retail displays and decorative branded interiors.

A 40mm deep double-sided profile is also available for suitable applications where graphics need to be viewed from both sides. Depending on the chosen configuration, frames can be wall-mounted or suspended from the ceiling.

Bespoke Sizes, Shapes and Finishes

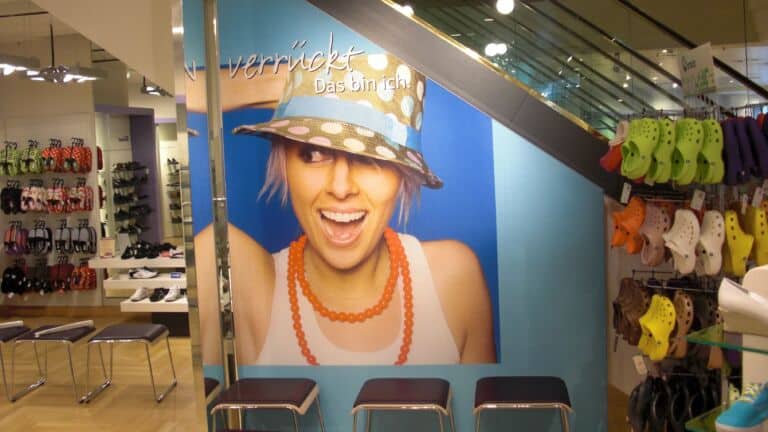

As well as conventional rectangular and square fabric frames, FabriTex aluminium profiles can be custom-cut to create a wide variety of shapes, including triangular, circular, cube-shaped and irregular designs, subject to the construction requirements.

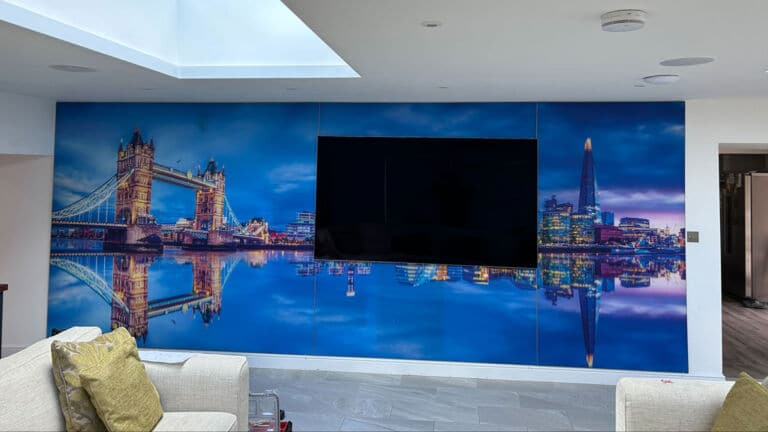

This flexibility makes custom tension fabric frames ideal for large promotional feature walls, retail shopfitting, architectural displays and branded installations incorporating digital screens or other visual elements.

The aluminium profiles are supplied in a silver anodised finish as standard, with optional RAL powder coating to match your corporate colours or interior design. Decorative vinyl finishes are also available, including brushed aluminium, marble and wood effects, at additional cost.

How Do Silicone-Edge Graphics (SEG) Work?

Silicone-edge graphics (SEG) are printed textile graphics with a flexible silicone rubber strip sewn around their perimeter. This strip is pressed into a specially designed channel within the aluminium frame, holding the fabric securely under tension and producing a smooth, virtually frameless display.

The graphics are fitted from the front of the tension fabric frame, making them easy to remove and replace without dismantling the aluminium structure. The result is a professional, edge-to-edge fabric display that can be updated whenever required.

SEG fabric frame fabric graphic installation guide

Easy-to-Change Tension Fabric Graphics

Changing a fabric graphic is straightforward. Simply remove the existing silicone edging from the frame channel, position the replacement graphic and press the new silicone strip into place around the frame.

Once properly fitted, the fabric is held evenly under tension to create a smooth printed surface without unwanted creasing or sagging. Most accessible graphics can be changed by hand without specialist tools.

This makes SEG fabric frames particularly practical for businesses that regularly update their seasonal advertising, promotional campaigns, product launches or corporate branding.

High-Quality Textile Printing and Replacement SEG Graphics

W&Co can supply your tension fabric frame complete with professionally printed textile graphics or provide replacement prints for an existing SEG frame.

Our SEG fabric graphics are produced using high-quality dye-sublimation printing to achieve vivid colours, sharp image detail and a professional finish. The printed 110gsm Trevira fabric is accurately cut to size, with silicone rubber edging precisely sewn around the perimeter to ensure a secure fit and a smooth, tensioned display within the aluminium frame. The specified maximum print width is 3,000mm, with larger displays available to discuss on request.

Simply provide your print-ready artwork in PDF format, and we can produce the printed fabric graphic to fit your chosen frame dimensions.

Unlike conventional rigid printed signs, these interchangeable fabric displays allow you to retain the existing aluminium frame and update only the graphic. This provides a practical, cost-effective solution for long-term advertising and interior branding.

Where Can Tension Fabric Frames Be Used?

Non-illuminated tension fabric frames are suitable for a wide range of indoor commercial applications. Their slimline construction, virtually frameless appearance and interchangeable textile graphics make them especially effective where high-quality visual presentation is important.

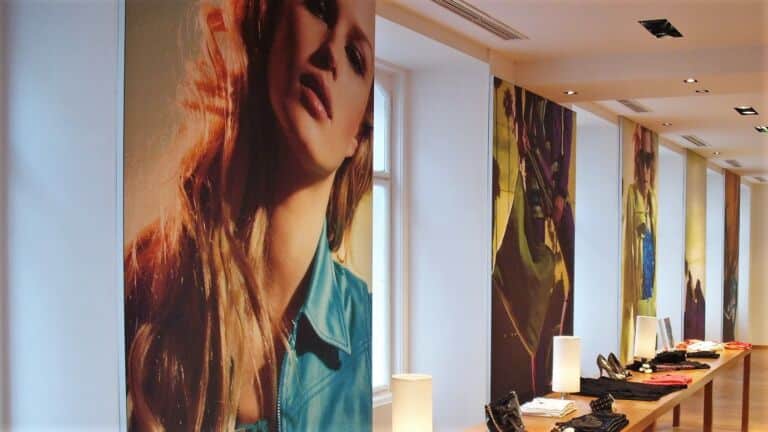

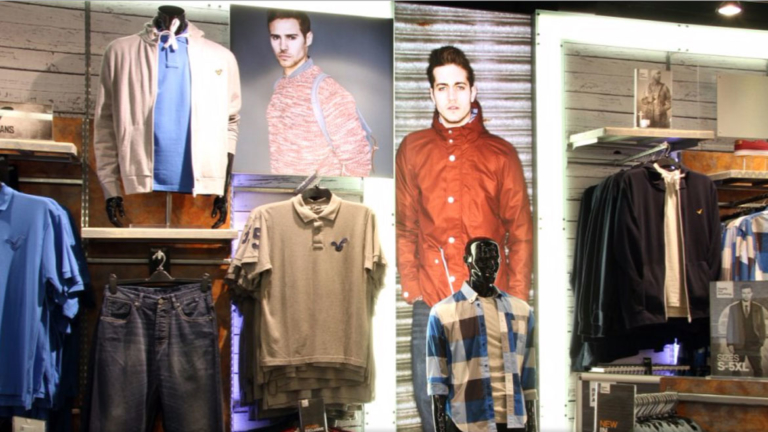

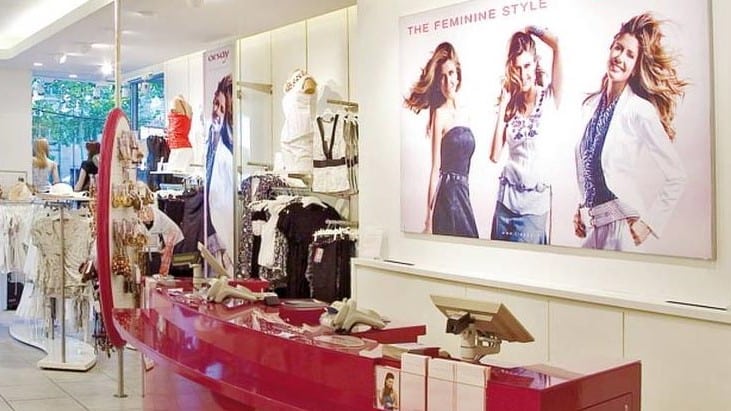

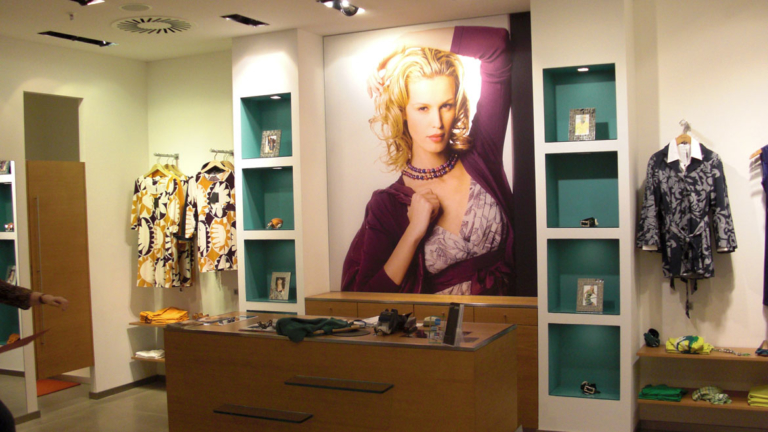

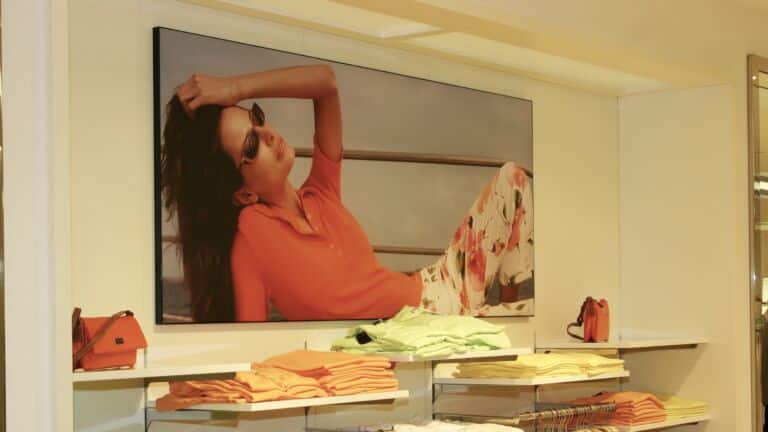

  • Retail shops and department stores: Large-format fashion advertising, seasonal promotions, point-of-sale displays and branded wall graphics.

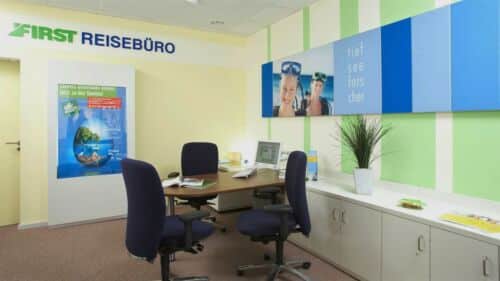

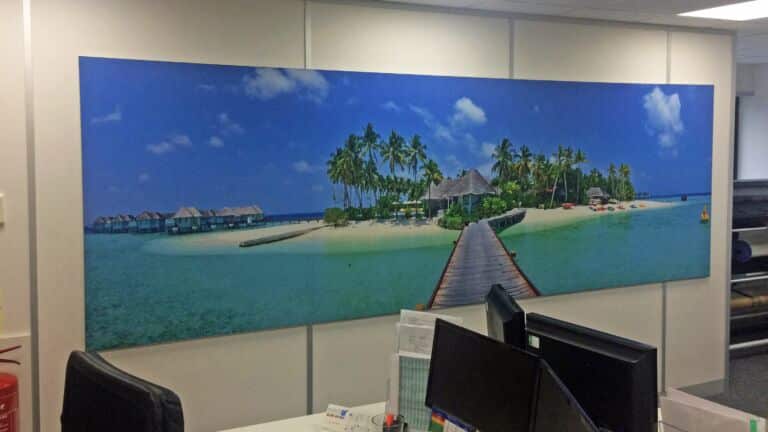

  • Offices and reception areas: Corporate branding, company imagery, decorative feature walls and reception graphics.

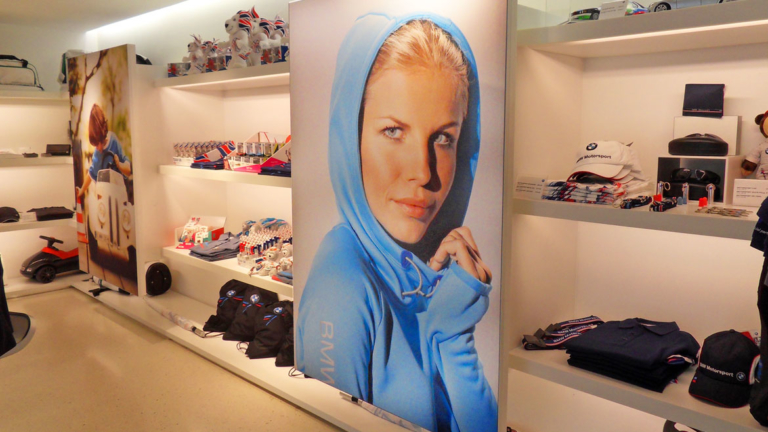

  • Car showrooms: Large photographic backdrops, promotional graphics and branded interior displays.
  • Exhibitions and events: Promotional backdrops and interchangeable advertising graphics for different campaigns.
  • Hotels and hospitality: Decorative textile graphics, branded interiors and promotional displays.
  • Shopping centres and commercial premises: Custom-shaped soft signage displays designed to complement architectural features and interior spaces.

For additional fabric display options, including larger installations and specialist configurations, explore our Tension Fabric Systems range.

Tension Fabric Frame Specifications

  • Dimensions: Standard and custom sizes in single or double-sided applications.
  • Profile: Silver anodised extruded aluminium.
  • Frame system: Virtually frameless, front-loading SEG system with silicone rubber edging.
  • Single-sided depth: 18mm or 24mm.
  • Double-sided depth: 40mm.
  • Standard colour: Silver anodised aluminium.
  • Optional finishes: RAL colours and decorative finishes, including brushed aluminium, marble and wood effects, at additional cost.
  • Print method: Dye-sublimation textile printing.
  • Print material: 110gsm Trevira fabric with a sewn-on silicone rubber strip at the edges.
  • Maximum specified print width: 3,000mm.
  • Graphic change: Removable silicone rubber strip fits into the aluminium profile channel.
  • Mounting: Wall-mounted or suspended, depending on frame configuration.
  • Illumination: Non-illuminated.

Why Choose W&Co for Tension Fabric Frames?

W&Co has extensive experience supplying high-quality tension fabric display systems for retail stores, car showrooms and commercial interiors throughout the UK. Our wider display and signage portfolio includes work for BMW, MINI, Land Rover, Suzuki, Marks & Spencer and Whistles, amongst many others. From slimline non-illuminated fabric frames to large-format illuminated displays and interchangeable SEG graphics, we can help you find the right solution for your project. View examples of our work.

Order Standard or Bespoke Tension Fabric Frames

Choose your preferred frame depth, dimensions and fabric graphic options using the product selectors above. Whether you require a single tension fabric frame, replacement SEG graphics or a bespoke textile soft signage installation, W&Co can help you select the most appropriate solution.

We supply tension fabric frames and printed graphics to businesses throughout the UK, with advice available on sizes, profiles, finishes and suitable mounting configurations.

For custom shapes, unusual dimensions or multiple commercial displays, request a free quotation or call 01708 863260 to discuss your requirements.

Tension Fabric Frame Frequently Asked Questions

Choosing and Using Your Fabric Display

What is a tension fabric frame?

A tension fabric frame is an aluminium display system that holds a printed textile graphic under tension using silicone edging. It creates a smooth, virtually frameless display suitable for retail advertising, office branding, exhibitions and other commercial interiors.

What does SEG mean in fabric displays?

SEG stands for Silicone Edge Graphics. A flexible silicone strip is sewn around the printed fabric and pressed into the aluminium frame channel, holding the graphic securely under tension while allowing easy replacement.

Can tension fabric frames be made to custom sizes?

Yes. FabriTex tension fabric frames can be manufactured in bespoke sizes and shapes, including large-format wall displays and irregular designs. The appropriate profile and construction depend on the dimensions and application.

Can I replace the fabric graphic without replacing the frame?

Yes. The front-loading silicone-edge system allows the printed fabric to be removed and replaced while retaining the existing aluminium frame. This makes tension fabric displays ideal for regularly changing promotional graphics.

Can I buy a tension fabric frame without the printed graphic?

Yes. FabriTex frames can be supplied with or without printed fabric graphics. Replacement silicone-edge prints can also be supplied for compatible existing frames.

What is the difference between a tension fabric frame and a fabric lightbox?

A standard tension fabric frame is non-illuminated and uses ambient lighting to display the printed graphic. A fabric lightbox incorporates LED illumination behind or around the textile graphic for a brighter display. W&Co also supplies Tension Fabric Light Boxes for illuminated applications.

Can tension fabric frames be wall-mounted or suspended?

Yes. FabriTex frames can be wall-mounted or suspended from ceilings where the frame configuration and installation conditions allow. The most suitable mounting method depends on the size and intended application.

Are tension fabric frames suitable for outdoor use?

Standard FabriTex tension fabric frames are designed for indoor use. For exposed outdoor locations, W&Co can advise on alternative signage systems suitable for the environment.

See Our Tension Fabric Frames in Action

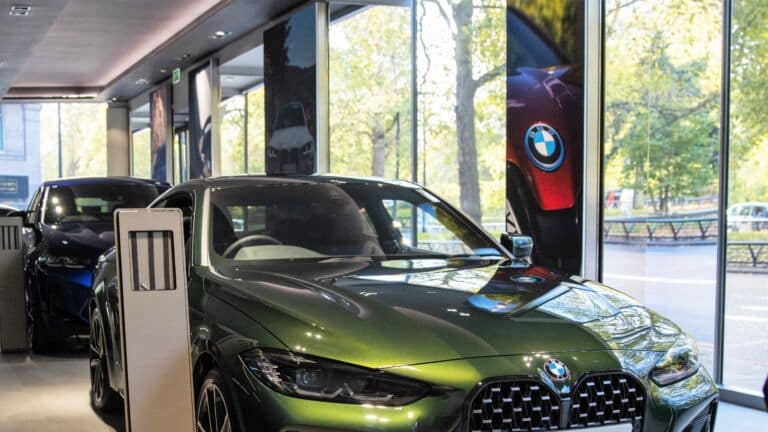

Watch examples of tension fabric frame installations at BMW Park Lane:
